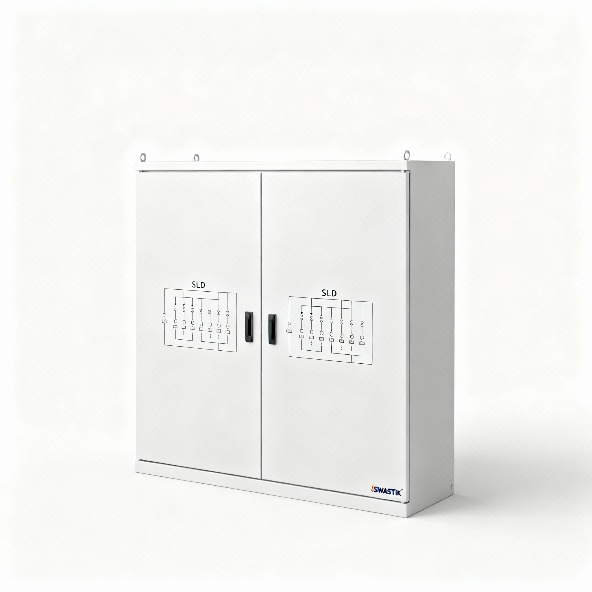

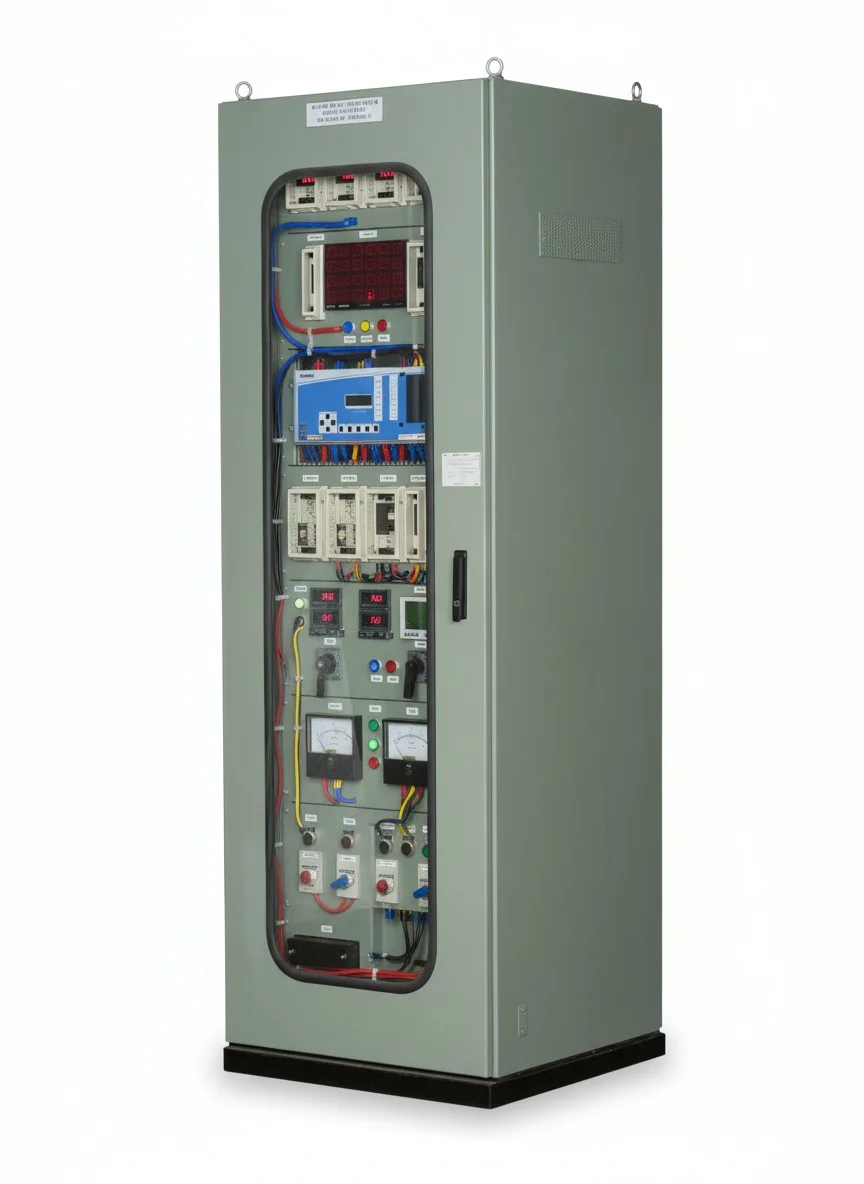

CONTROL & RELAY PANEL
IEC-compliant indoor Control & Relay (C&R) panel engineered to operate and protect 33 kV porcelain-clad outdoor VCBs with reliable local/remote control, metering, annunciation, and SCADA connectivity.
Standard: IEC/IS for MV protection and control; enclosure IP4X, Form-4 segregation
Use: Indoor C&R panel for 33 kV incomer/feeder/transformer bays with outdoor VCBs
Features: Numerical relays (OCR/EF/SEF/BFR), mimic SLD, CB control switch, alarms/annunciation, multifunction metering, event logs, SCADA-ready (Modbus/IEC), bottom cable entry, lockable doors
Immediate Assistance
Product Gallery
Reliable 33 kV
Outdoor Protection
Deploy IEC 62271/200 porcelain-clad VCBs built for high uptime, internal-arc safety, and rapid commissioning
Product Description
Swastik’s 33 kV Control & Relay (C&R) Panel is an IEC-aligned indoor control solution engineered to operate and protect outdoor porcelain-clad VCB bays in primary substations and utility yards. Built with Form-4 segregation, IP-rated enclosures, and disciplined wiring practices, it enables safer operation, faster fault isolation, and seamless integration with numerical protection, advanced metering, and SCADA.
* Voltage class: 36/33 kV systems; 50 Hz.
* Protection: numerical relays for OCR/EF/SEF, BFR, synchro-check, and configurable logic; event logs and timestamped disturbance records.
* Safety: interlocked CB/TNC switches, spring-return controls, pad-locking, mimic SLD with LED/buzzer annunciation, and terminal shrouds.
* Construction: Form-4 metal partitions, IP4X external/IP2X internal, segregated control/terminal chambers, ferruled wiring, labeled terminals.
Technical Specifications
Comprehensive technical details and performance parameters
Our product range for both indoor and outdoor panels includes:
- Feeder protection panel for both incoming and outgoing lines
- Transformer panel covering both HV and LV side protection
- Panels for the protection of switchgear equipment on Bus Coupler
Our range of Protection Relay Panels, Control Panels and Control Desks provide optimum system solutions fulfilling the protection control requirements of Substations, generating plants, process industries, Telecommunication and Railway utilities. These are specially engineered and custom-built to cater to the specific needs of the utilities and large industrial undertakings for medium and high voltage protection, control and monitoring applications.
Related Products
(PSS) OR COMPACT SUB-STATION
RING MAIN UNIT
(RMU)
CONTROL & RELAY PANEL
33 KV PCVCB PANELS (OUTDOOR)
FAQ'S
Swastik’s VCBs use high-grade porcelain/silicone insulators, hot-dip galvanized structures, and IP-rated weather-proof kiosks—ensuring durability, safety, and reliable operation in extreme outdoor conditions.
Yes, our outdoor VCBs are SCADA-ready and support remote monitoring via numerical relays, CT/PT metering, and standard Modbus/IEC protocols, making them ideal for modern substations and utility grids.
These panels comply with IEC 62271-200 and Indian standards, featuring internal-arc safety (AFL/AFLR), routine/test reports, and all documentation required for utility and consultant approvals.
Typical configurations offer 36 kV insulation, 33 kV operation, up to 25/31.5 kA short-time withstand, and 630–1250 A continuous current, with project-specific options for unique applications.
Swastik provides detailed GA drawings, SLDs, wiring schematics, O&M manuals, design/FAT support, on-site commissioning, and genuine spares for smooth and efficient project execution.
