PCC vs MCC vs VFD Panels: Selection Guide, Short-Circuit Ratings, and Ownership Costs for Indian Plants
Understanding the differences between PCC, MCC, and VFD panels helps engineers specify safe, efficient low-voltage distribution that passes consultant and utility reviews. This guide covers ratings, protection, form of segregation, busbar materials, and lifecycle costs relevant to Indian industries.
What each panel does

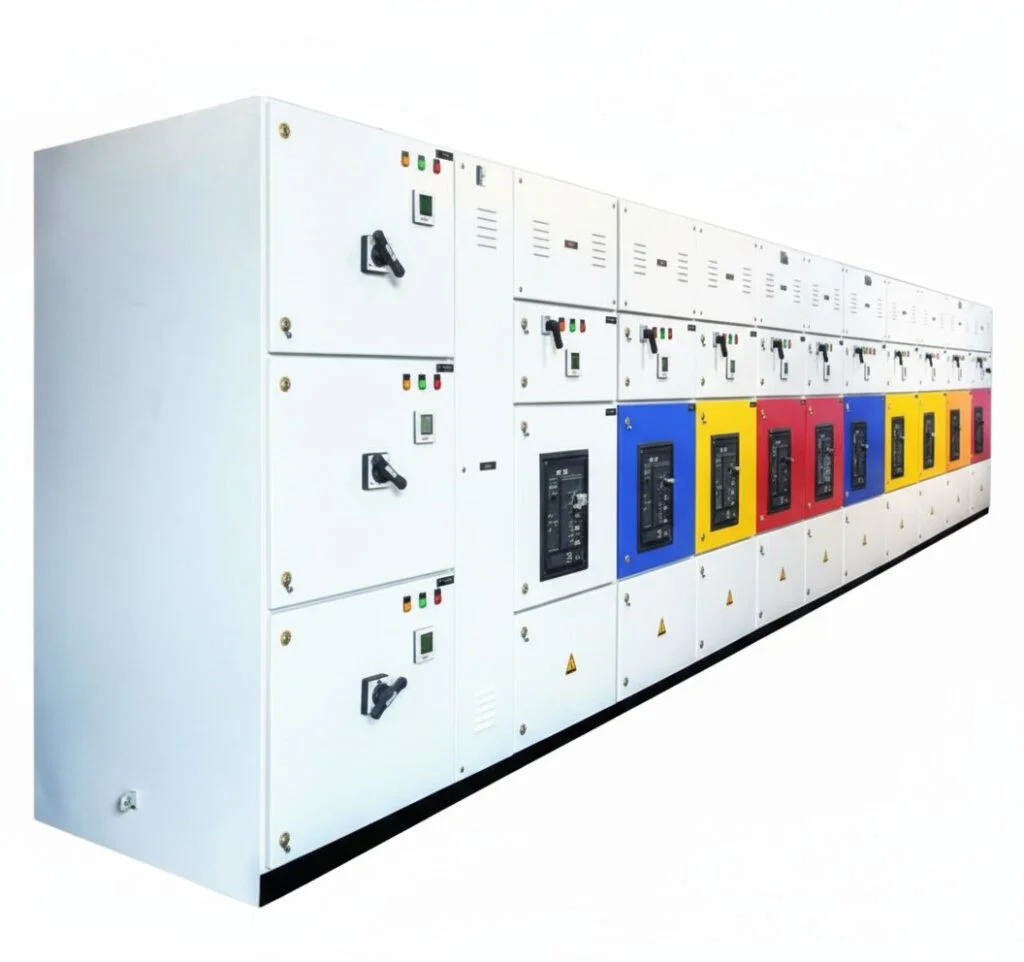

- PCC (Power Control Center): Main LV switchboard—receives power from transformer/UPS/GEN, distributes to feeders, process MCCs, and large loads; houses incomers, bus couplers, metering, power-quality devices.
- MCC (Motor Control Center): Feeds motors/pumps/fans with DOL/SD/Star-Delta/soft-starter/VFD feeders; focuses on motor protection, interlocks, and maintenance access.
- VFD Panel: Dedicated variable-frequency drive sections or standalone drives for speed control, energy savings, and process optimization; includes input/output chokes, filters, and bypass options.
- Loss of Service Continuity (LSC): LSC2A/2B categories influence maintainability and uptime.
Key specification checklist
- System ratings: 415 V, 50 Hz; fault level 50/65/80 kA at 1 s—match to upstream transformer and utility data.
- Busbars: Copper preferred for high fault levels and low temperature rise; aluminum as a cost-optimized option with derating and proper joints
- Form of separation: Form 2/3/4; Form-4B with withdrawable or plug-in feeders enables safer maintenance and uptime.
- IP rating: IP42/IP54 indoor; IP55/65 for dusty or humid areas; ensure gland plates and space heaters.
- Protection and metering: ACB/MCCB with Micrologic/electronic trips, E/F, G/F; energy meters with harmonics, PF, and demand logs.
- Power factor and harmonics: Consider APFC with detuned reactors; for heavy VFD content, specify passive/active filters and IEEE 519 compliance.
- Controls: PLC/SCADA, motor interlocks, interposing relays, marshalling, and labelled terminal management for faster commissioning.
When to choose each
- PCC: For site mains, multiple incomers (Transformer + DG), bus coupler schemes, and power quality devices such as APFC and PQ meters.
- MCC: For high motor density areas—utilities, HVAC, process lines—where withdrawable feeders and maintenance isolation matter.
VFD panel: For pumps/fans/compressors where variable speed drives save 20–50% energy and reduce mechanical wear.
Short-circuit and coordination
- Verify panel short-circuit rating ≥ the calculated fault level at the installation point; coordinate ACB/MCCB/MCB curves for selectivity and arc energy reduction.
- Use Type-2 motor starter coordination (contactor + MPCB/fuse) to ensure components remain serviceable after faults.
Cost of ownership (TCO)
- Copper bus vs aluminum: higher capex vs lower losses/temperature rise; evaluate lifetime energy loss on main feeders.
- Withdrawable MCCs cut downtime costs; VFDs cut energy and improve process control—often payback in 12–24 months.
Documentation to request
- Single-line diagrams, GA layouts with cable entry details, heat dissipation, Form-4 schedules, device lists with settings, and FAT/Routine test plans.
